HALOT-X1 / True Leveling-Free 16K Resin 3D Printer

الوصف

Our Journey Begins

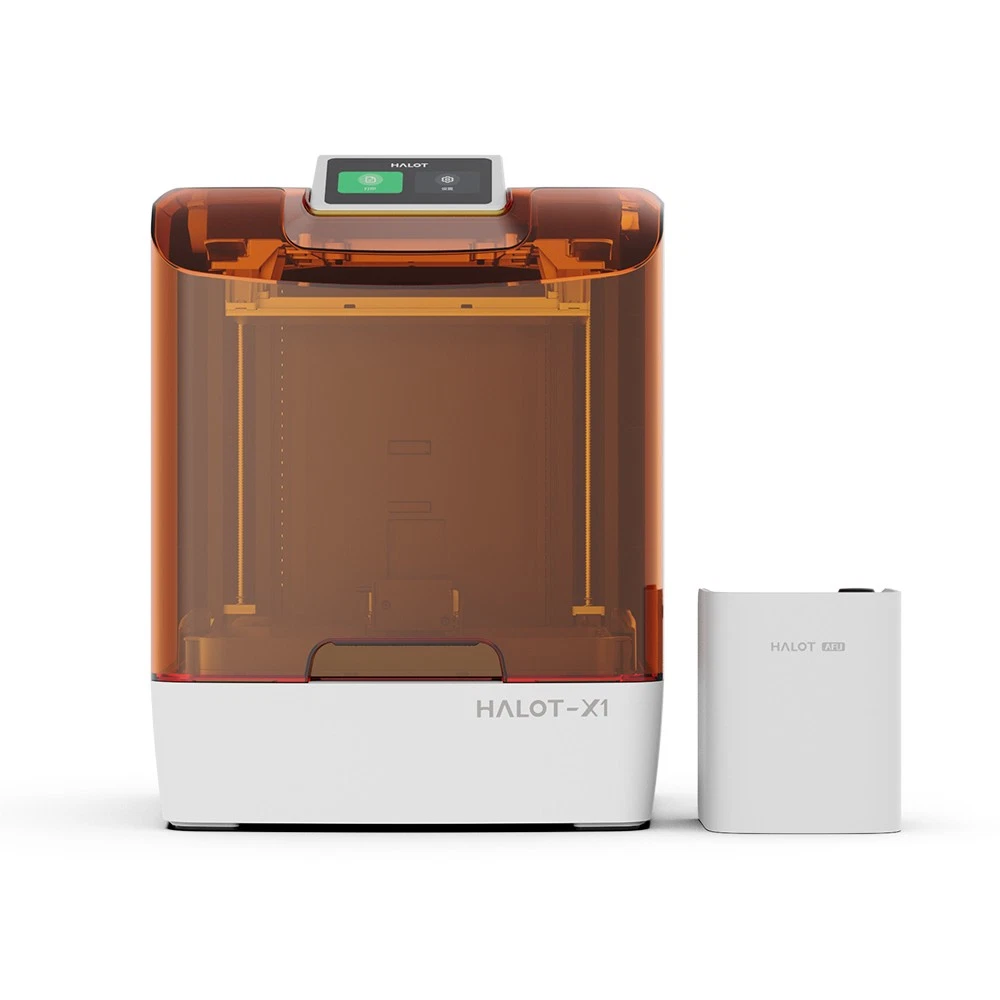

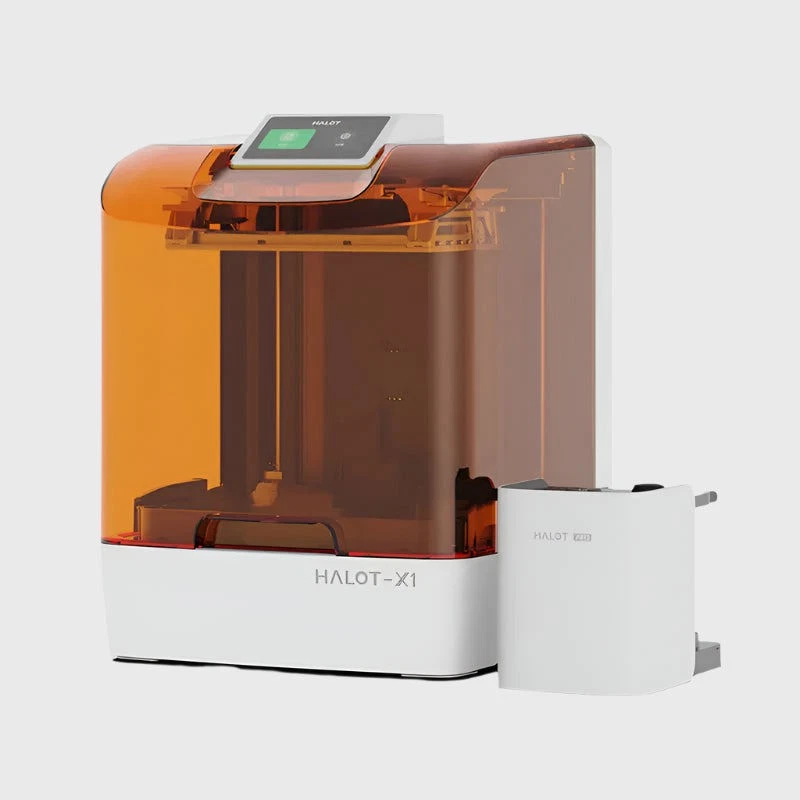

Meet the PioCreat HALOT-X1

Our Core Innovation

True Leveling-Free

Say goodbye to time-consuming leveling calibration as the build plate is fixed and ready to print out of the box.

New Motion Structure

Unlike traditional resin 3D printers, HALOT-X1 introduces a new top-down movable optical system. The dynamic optical module and resin vat move from top to bottom, while the build plate remains stationary. This innovative approach significantly improves printing stability and accuracy. Dual linear rails & dual lead screws enhance the stability and precision of Z-axis movement throughout the printing process.

No More Scraping: Just a Twist to Quick Remove Models

No more worrying about damaging delicate prints by manually scraping models. Simply twist the handles on either side of the build plate bracket to pop out the quick-release bar, then easily push the finished models off.

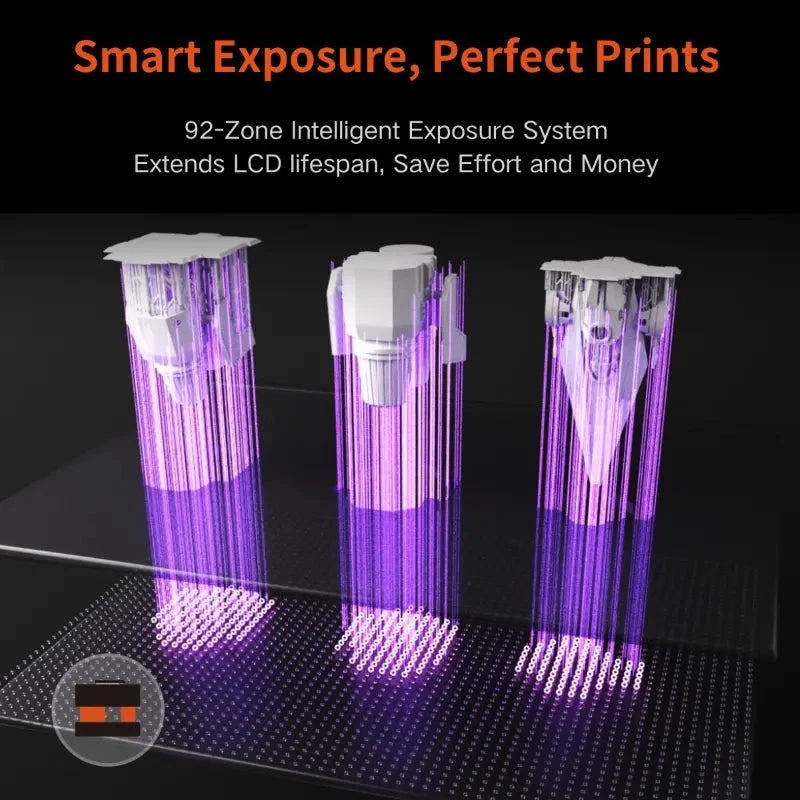

92 Light Zones Intelligent Exposure

The HALOT-X1 incorporates Advanced Intelligent Zoning Technology to partition the display into 92 discrete zones. By precisely activating the light source exclusively in areas requiring exposure control, this innovative system effectively prevents screen overexposure while prolonging the display’s operational lifespan.

Chamber Heat Circulation

With its intelligent chamber heat circulation design, you can experience improved print quality and consistency. During printing, the heat from the light board is effectively transferred to the chamber, ensuring heat dissipation while maintaining the ambient temperature.

Take a Closer Look at HALOT-X1

Sleek & Modern Appearance

The HALOT-X1 combines functionality with a modern, appliance-inspired aesthetic. Its smooth, curved contours seamlessly complement any home or workspace.

• Top-mounted Floating Touchscreen

You won’t have to bend over to operate the printer anymore. The top-mounted floating touch screen lets you control the printer easily and intuitively and monitor the print status via an easy-to-read digital display.

• Generous Build Volume

The 211.68×118.37×200 mm build volume provides ample space for your innovative projects and designs.

• Compact Size, Bigger Impact

The HALOT X1 (Dimensions：344×331×434mm) has a 10.1″ build area and a 19% more compact volume than similar-build 10.1″ printers (350×340×510mm), achieved through hardware structural innovations for space-efficient applications.

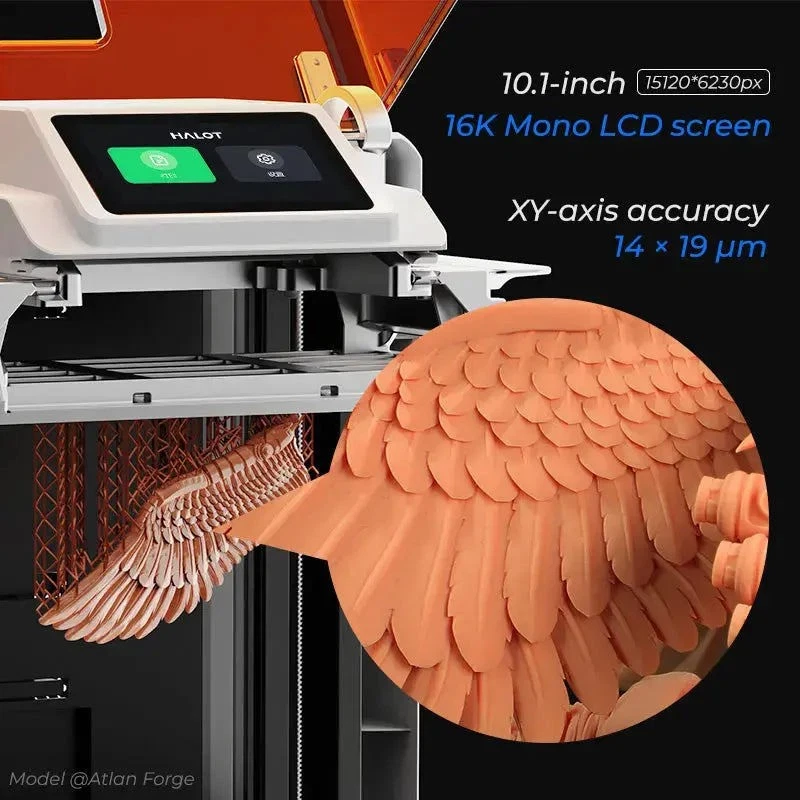

Exceptional Print Quality with 16K Mono LCD

The 10.1-inch 16K Mono LCD screen offers jaw-dropping detail and clarity. It boasts a resolution of 15120×6230 pixels and a pixel size of just 14×19μm.

• Highly Collimated Honeycomb Matrix Light Source

Deliver powerful 6000 µW/cm² light intensity and high collimation for consistent & uniform exposure and high-quality molding across the entire printing surface.

• Intelligent Layout Software

Combined with the zoned exposure scheme, the software provides intelligent layout recommendations to optimize layout area, evenly distribute pressure on frequently used LCD areas, reduce the chance of bad pixels forming on the screen, and maximize screen lifespan.

• Your Go-To Slicer – CHITUBOX Pro

Renowned for its ease of use and powerful features, CHITUBOX Pro is the trusted choice in the resin 3D printing community, enabling faster, smarter, and more reliable model preparation. Enjoy a FREE 3-month CHITUBOX Pro(valued at $42) included with the HALOT-X1.

Intelligent AFU Resin Management System

The HALOT-X1 simplifies resin handling with an automated and intelligent resin management system for seamless and efficient workflow.

• Automatic Resin Feeding & Recycling

The laser dynamic detection system monitors resin levels in real-time. It automatically feeds in a low liquid level state and stops feeding in a high liquid level state. After printing is complete, the device automatically recycles the leftover resin.

• Resin Heating

The fast heating function heats resin to 30~45℃ within 3 minutes and allows for manual temperature adjustment. This effectively reduces resin viscosity and enhances printing quality and success rate in low-temperature environments. The heating module is positioned near the bottle opening for more even and efficient heating before the resin reaches the vat.

• RFID Tag Identification

Each HALOT official resin bottle has an RFID tag at the bottom. After placing the resin bottle in the feeding module, the module automatically reads the tag and retrieves the corresponding print parameter package from the cloud, eliminating manual configuration.

• Real-Time Resin Weight Monitoring

Automatically weighs and detects the remaining weight of resin bottles in real time.

User Friendly Design

• Automatic Release of Build Platform

Once printing is complete, the system automatically releases the build platform through the linkage mechanism, making removing the platform and printed model convenient. For added convenience, a resin tray is included to prevent resin from dripping onto the front of the resin VAT. This ensures faster and cleaner removal of printed models above the resin vat.

• LCD Screen Protector

A protective film protects the LCD screen to prevent scratches, resin leakage and damage.

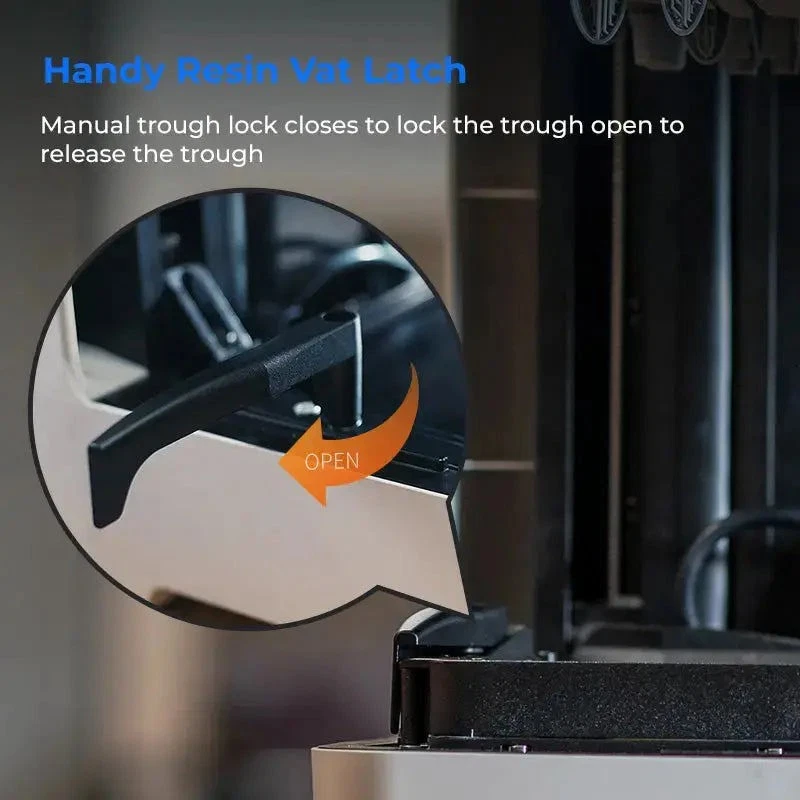

• Handy Resin VAT Latch

A simple swing to lock or release the resin VAT for quick maintenance and resin vat cleaning. The brand-new composite high-temp NACF release film outperforms ACF films with an extended lifespan, higher temperature resistance, and lower release force.

• One-Click Printing

When using the official resin, the preset parameter package will be automatically selected. The printing parameters need not be adjusted manually; printing starts with one click.

• Power-Off Resume Function

Say goodbye to failed prints caused by unexpected power outages. HALOT-X1’s power-off resume feature ensures your print picks up right where it left off, saving your time, material, and effort.

All-in-One Ecosystem for Seamless Integration

Showcase Prints
